Map: View Vehicles

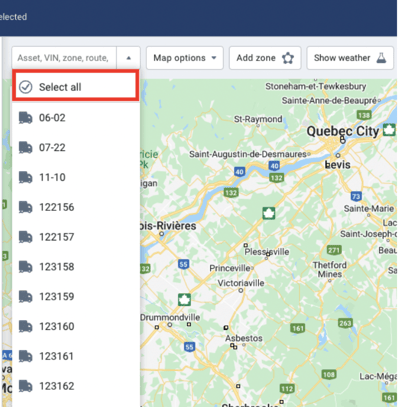

To view the current location of your assets on the map, select Map from the main menu. You can select specific assets using the search box or click the Select All button to view all of your assets.
 1-Nov-15-2022-07-52-55-8169-PM


Selected vehicles will be dark blue.

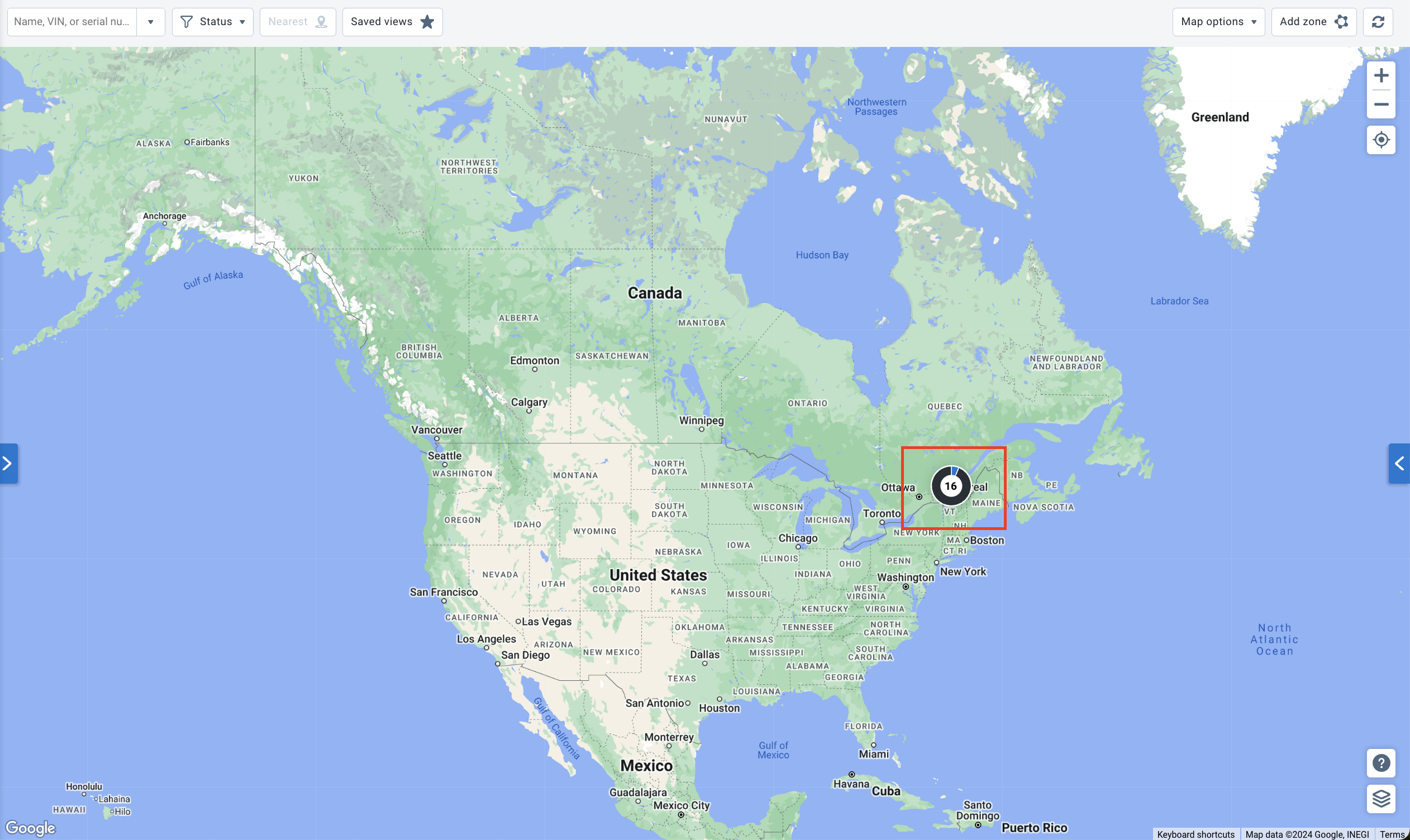

⚠ Note: If your database contains more than 50 assets, the map remains empty until you select the assets to display in the search field. Once the vehicles have been selected, depending on the quantity of assets in your fleet, an orange and green circle will indicate the quantity of vehicle.
Orange indicates stationary vehicles and green indicates moving vehicles.
Press the circle to get a closer view of your vehicles.
 2-Nov-15-2022-07-53-14-9562-PM


In the advanced view, open the Columns drop-down list to choose the information to display.

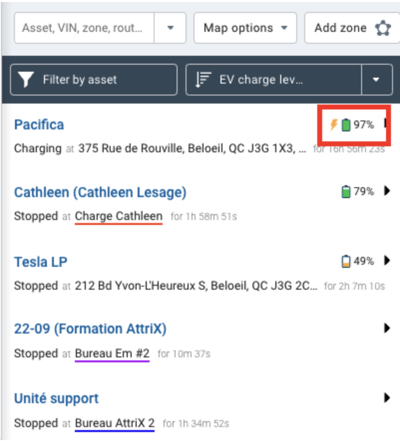

Fleets with electric vehicles can monitor EV charging activity directly on the map. A vehicle's current charge level is shown next to its name. Loading vehicles are marked with a lightning bolt icon.


 3-Nov-15-2022-07-53-28-3294-PM

Map Interaction

The map offers two interaction options: left-click on assets and left-click on roads. Each interaction opens a menu of options from which you can choose. Some options are available in both menus.

Vehicles are sorted by their status.

The current status, position and duration of the status will all be indicated under the asset.

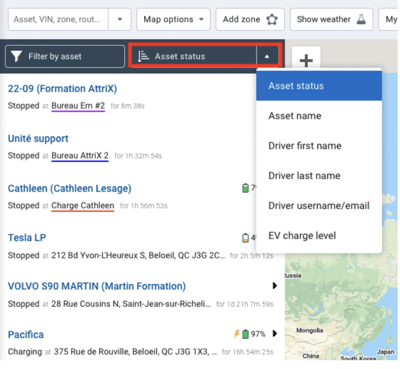

To change the view, press the arrow and select the desired option.
4-Nov-15-2022-07-53-58-0214-PM

Vehicles will be displayed on the map with an icon legend.


5-Nov-15-2022-07-54-26-7251-PM

The tip of the arrow indicates the current direction of vehicle movement.
 6-Nov-15-2022-07-54-46-1785-PM
